SLF12565T-680M2R0-PF
Manufacturer:
TDK Corporation
Mfr.Part #:
SLF12565T-680M2R0-PF
Datasheet:
Description:

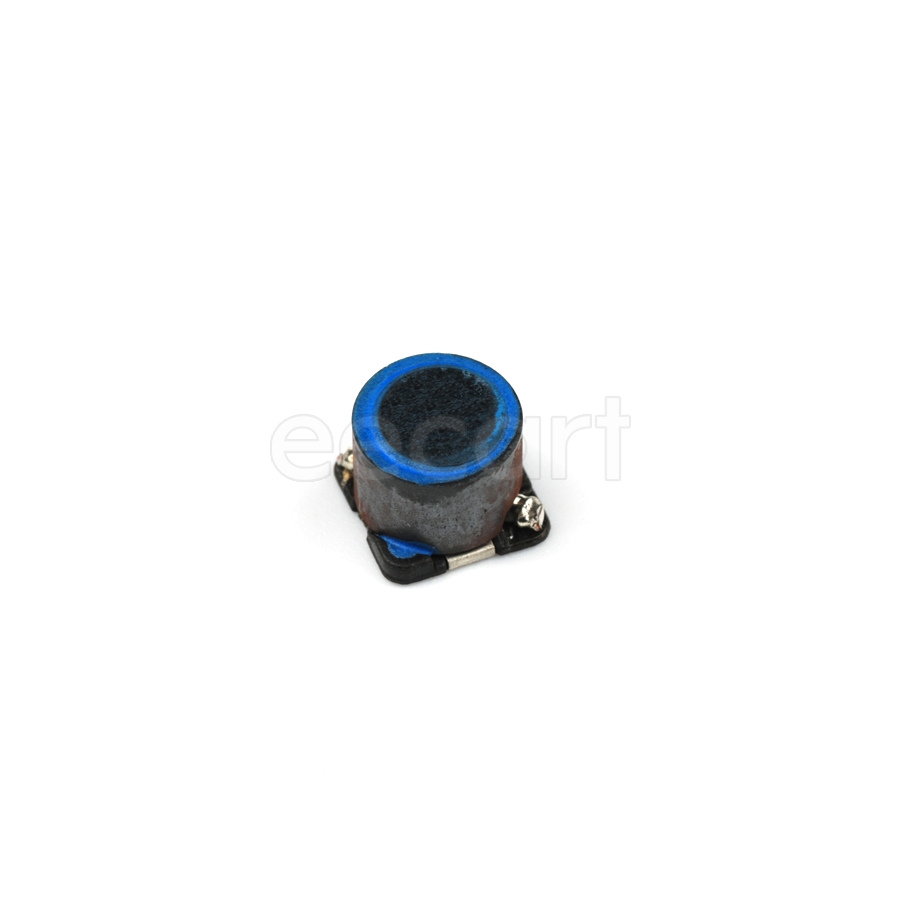

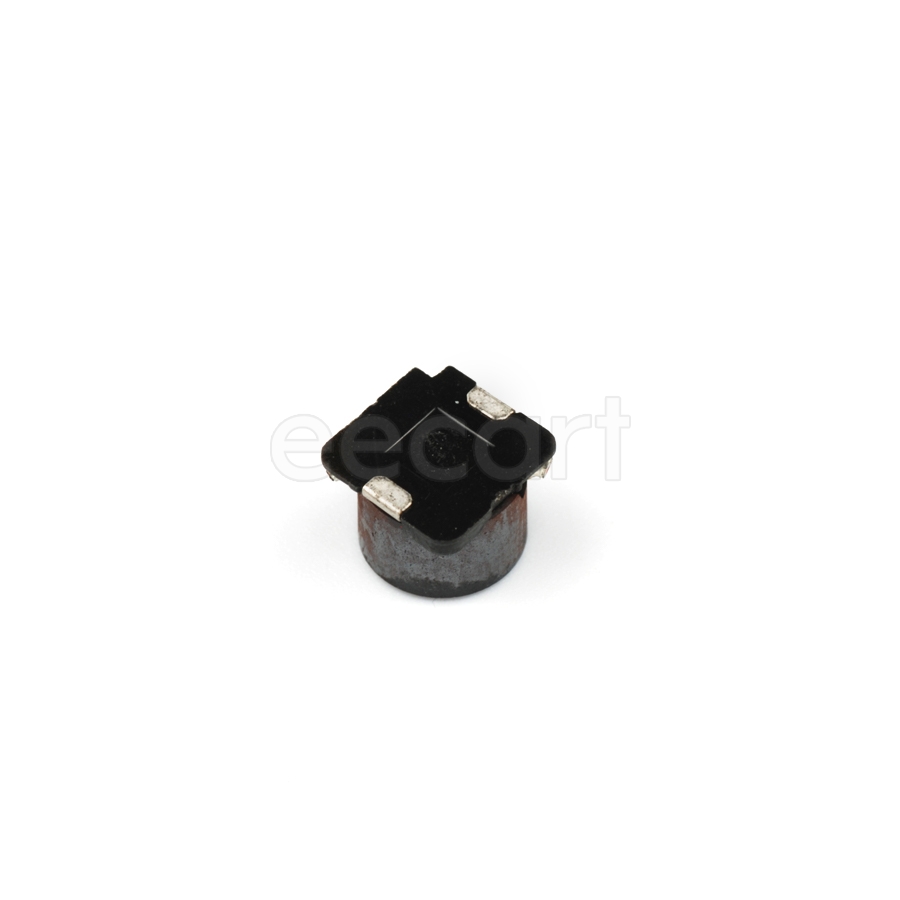

Fixed Inductors 12.50mmD×6.50mmH SMD/SMT 68 µH 20 % 2.4 A 78.7 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 6.86 mm |
| Length | 12.5 mm |
| Width | 12.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 6.5 mm |
| Packaging | Reel |
| Depth | 12.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 2.4 A |
| DC Resistance (DCR) | 78.7 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Shielding | Shielded |
| Inductance | 68 µH |
| Core Material | Ferrite |
| inductance tolerance | 20 % |
| Max DC Current | 2.4 A |
| DC Current | 2.4 A |
| Saturation Current | 2 A |
| Schedule B | 8504500000 |
| Type | Wirewound |
Stock: 531
Distributors
pcbx
pcbxUnit Price$0.86074
Ext.Price$0.86074
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.86074 | $0.86074 |
| 10 | $0.43037 | $4.30370 |
| 25 | $0.39999 | $9.99975 |
| 50 | $0.37176 | $18.58800 |
| 100 | $0.34551 | $34.55100 |
| 300 | $0.32553 | $97.65900 |
| 500 | $0.30671 | $153.35500 |
| 1000 | $0.25909 | $259.09000 |
| 3000 | $0.24896 | $746.88000 |
| 5000 | $0.23922 | $1196.10000 |
| 10000 | $0.22569 | $2256.90000 |
